Nikon 135mm f/2 DC Show and Tell

Posted on October 22, 2013 by owencherry

In my previous post I showed how the Nikon AF-S 18-35mm f/3.5-4.5G filled my needs for a wide lens. As one of Nikon’s newest lenses it has a compact, light build and modern design. Needing a telephoto at the opposite end of the focal length spectrum I had the option of the brand new Nikon AF-S 70-200mm f/4 VR, recently on sale for a reasonable price. What I really wanted was a nice, fast prime. I scoured online every once in a while and last week hit the jackpot. A used Nikon 135mm f/2 DC!

This is a highly regarded portrait lens and short telephoto. It’s one of the oldest lenses that Nikon still sells and has remarkable build quality with an all metal body. Mine is the non-D version (something I didn’t even notice when buying it) but that only limits flash metering. It’s somewhat rare, too, as it’s expensive when bought new. The cost of this used copy was much more reasonable.

‘DC’ stands for ‘Defocus Control’, something of a misnomer as it is actually a ‘bokeh fine tune’. A control ring at the front of the lens shifts a pair of optics to tune the spherical aberrations to optimize either the foreground or background blur as I’ll show shortly. Even without using the defocus control, the blur is spectacular. Truly.

f/2

f/2

f/2.8

Like I said… truly spectacular. And, thanks to the super-shallow depth of field when wide open, it’s great for Brenizer Method bokeh panoramas.

15+ shot Brenizer Method bokeh panorama at f/2

Now, while the autofocus is reasonably quick for a screw-drive lens, the accuracy leaves something to be desired. When researching this lens in forums and reviews, AF accuracy was the number one complaint. I’ll demonstrate below. Here is a shot at f/2.8 that took four tries to nail the focus on my dad’s face.

f/2.8

With focus nailed, it’s razor-sharp, but when it’s off you really notice! Here are a couple of crops. The first is of the image above while the second is from a previous attempt.

f/2.8 (well focused)

f/2.8 (slightly out of focus)

Now on the defocus control. The method for using this feature is as follows:

Set the lens to the desired aperture.
Turn the ‘Defocus Image Control’ ring in either the forward or reverse direction from 0 to the R or F number that matches the aperture.
Turn to an R or F number that is greater than the set aperture and you get an unpleasent soft focus

Turning the control ring in the R direction improves the quality of bokeh behind the subject (but has a negative impact on foreground blur). Likewise, Turning in the F direction improves the bokeh in front of the subject (but noticeably hurts the background blur). Here is a demonstration, with three images of the same subject at f/4. The first is with the control ring at 0. The next is with the control ring at 4 in the R direction. The third is with the control ring at 4 in the F direction. Notice the subtle difference in bokeh at the foreground and background.

f/4 with DC ring at 0

f/4 with DC ring at R4

f/4 with DC ring at F4

Here are some crops to demonstrate even further:

I’m in love with this lens. I really am. However, I hope that I can figure out a way to work around the focus inconsistencies to really get the most out of it. I know it will take some work… and I’m looking forward to it!

I’ll leave you with some more examples, including mandatory cats and Mitzy.

f/2.8

f/2.8

f/4

f/2

f/2

f/4

f/2.8

f/2.8

f/2.8

f/4

f/2.8

f/2

f/2

f/2

f/4

This Weekend I Bought a D700 Part 5 – Tokina 11-16mm f/2.8 Pro DX

Posted on June 20, 2013 by owencherry

Yes, this is a DX lens and I shouldn’t expect its image circle to cover the D700 sensor… but let’s try anyway. Here are images of my ceiling at f/2.8 at 11mm through 16mm with no lens corrections applied:

11mm

12mm

14mm

16mm

If we add lens correction to the 16mm image, it doesn’t look that terrible!

16mm with lens correction

Here are a few examples at 16mm. They aren’t perfect but I would consider the lens useable in a pinch… at least until I figure out what to use for my wider-than-35mm lens.

The Weekend I Bought a D700 Part 4 – Nikon AF-S 60mm f/2.8 G Micro

Posted on June 20, 2013 by owencherry

My fourth FX lens to try on the D700 is the AF-S 60mm Micro. Another super sharp lens, it gave me some great images full of smoothness and contrast.

Crop of the above image

This Weekend I Bought a D700 Part 3- Nikon AF-S 85mm f/1.8 G

Posted on June 20, 2013 by owencherry

The 85mm G has a reputation of being one of the sharpest Nikon lenses out there and I see no reason to argue with that. For it’s price it really does a great job with bokeh, sharpness and colours. I’ll let the photos speak for themselves.

First, the comparison from f/1.8 to f/5.6:

f/1.8

f/2.8

f/4

f/5.6. Note the slightly hexagonal bokeh.

And a few more examples:

This Weekend I Bought a D700 Part 2 – Sigma 50mm f/1.4

Posted on June 20, 2013 by owencherry

In this post I’ll show some examples of the Sigma 50mm f/1.4 on my new (to me) D700. Like the Sigma 35 from the previous post, this lens is great on the D700. The bokeh is lovely and it’s nice and sharp. I’d say the only complaint is inconsistent exposure; it tends to over expose much of the time.

Here is a series of the bicycle subject at close distance from f/1.4 to f/5.6:

f/1.4

f/2

f/2.8

f/4

f/5.6

And some more examples:

This Weekend I Bought a D700 Part 1 – Sigma 35mm f/1.4 Art

Posted on June 20, 2013 by owencherry

That’s right, friends! I finally made the jump to full frame. I found a near mint D700 at Henrys with a grand total of 1100 actuations on it. I really had no choice, did I? To be honest it was a bit of a toss-up between the D700 and a new D600. Each have their advantages and disadvantages but in the end I went with the body with a more pro build, better AF system, reliable QC and an interface that I really like. In fact the interface is nearly identical to my D300s and after an hour setting the D700 up I can pick up either body and it will act identically. Plus the grip and batteries work on either.

Needless to say, all of my lenses have a new character to them. In the next few posts I’ll show some examples I took over the past 5 days with each of my FX lenses, plus some extras. Let’s start with the Sigma 35mm f/1.4 Art. This focal length combined on full is the main reason for making this whole decision… after getting a taste for a true 35mm on my N80 film body. The FOV is totally natural to me.

Here is a series of shots from f/1.4 to f/5.6 with a close subject. I challenge anybody to find a problem with the bokeh here. I find it glorious.

f/1.4

f/2

f/2.8

f/4

f/5.6

More examples:

A Quick Comparison of the Sigma 35mm f/1.4 and Nikon 35mm f/1.8 DX on the D300s

Posted on June 20, 2013 by owencherry

As promised, here is a side-by-side comparison of the absolutely wonderful Sigma 35mm f/1.4 Art and the well-respected Nikon 35mm f/1.8 DX on a cropped sensor camera. What I found amazing is how close the two lenses are in sharpness. The bokeh, distortion, fringing, chromatic aberration and vignetting are clearly better in the Sigma but the Nikon really does hold its own.

Do I regret buying the Sigma? Absolutely not.

Below is cropped in from the above image.

The Nikon definitely shows more fringing in extreme contrast.

The Sigma 35mm f/1.4 Art

Posted on May 26, 2013 by owencherry

Finally! Ever since I gave up shooting with Pentax and switched to Nikon I’ve yearned for a lens like the FA 31mm f/1.8 LTD. That Pentax lens was staggeringly good and I hadn’t found anything to match it in the F-mount system… until now with the Sigma 35mm f/1.4.

I’ll start this post with a reminder that I shoot with DX bodies (at least for the time being) so the field of view (FOV) of this lens is more like 52.5mm, acting like standard prime. I’m not going to dwell on technical details in this review. Other sites do a far better job than I’m willing to do, with analyses down to the pixel level and direct comparisons to other lenses (here and here, for example).

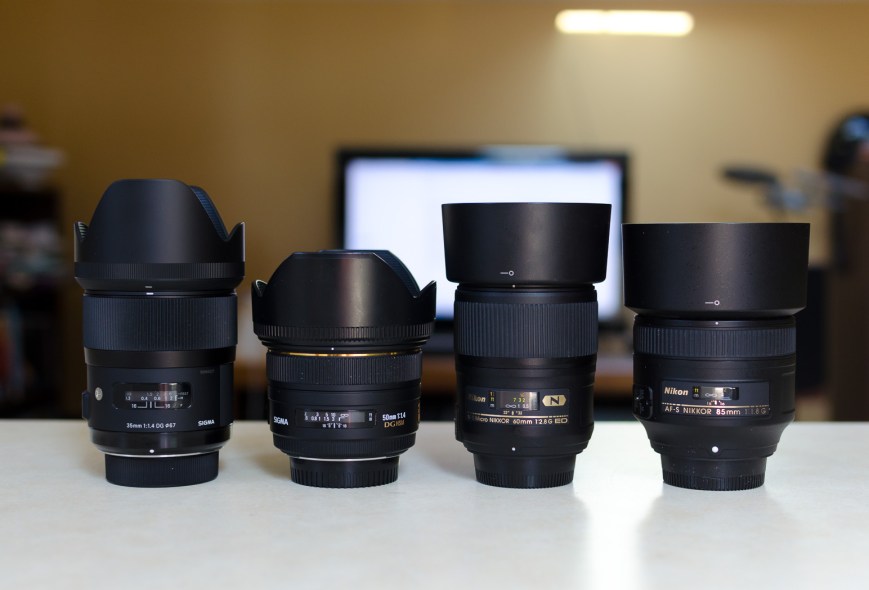

Here is my current fast prime lineup, all cover FX lenses in case I ever decide to go that route. From left to right: Sigma 35mm f/1.4, Sigma 50mm f/1.4, Nikon AF-S 60mm f/2.8G Micro, Nikon AF-S 85mm f/1.8G. This is a great combination for FX, and pretty good for DX. A wider prime would still be needed but for now the 17-55mm f/2.8 fills that roll.

Being an f/1.4 lens, I’ve naturally focussed mostly on the wide aperture capabilities. I’m amazed at how sharp it is at wide open. Not only is it sharp but the contrast is quite high, making the in-focus subject pop. Stopping down does sharpen the image even further but really, I find the lens sharp enough at all apertures. It even shines on the D7000, a body I’ve found extremely sensitive to most lenses. Here are a few wide-open examples from the D300s (first two) and D7000 (the next four):

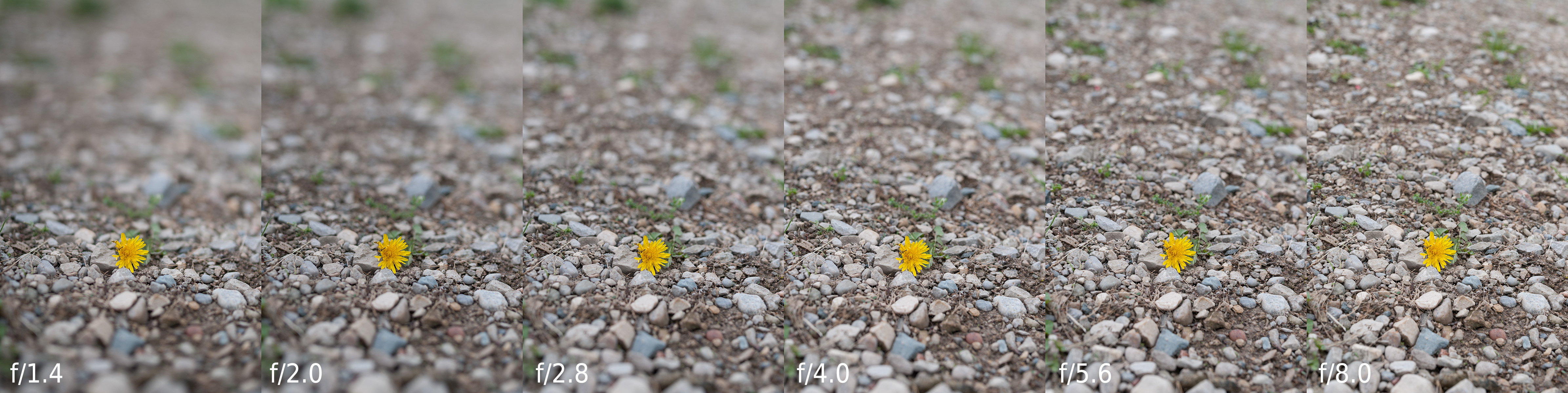

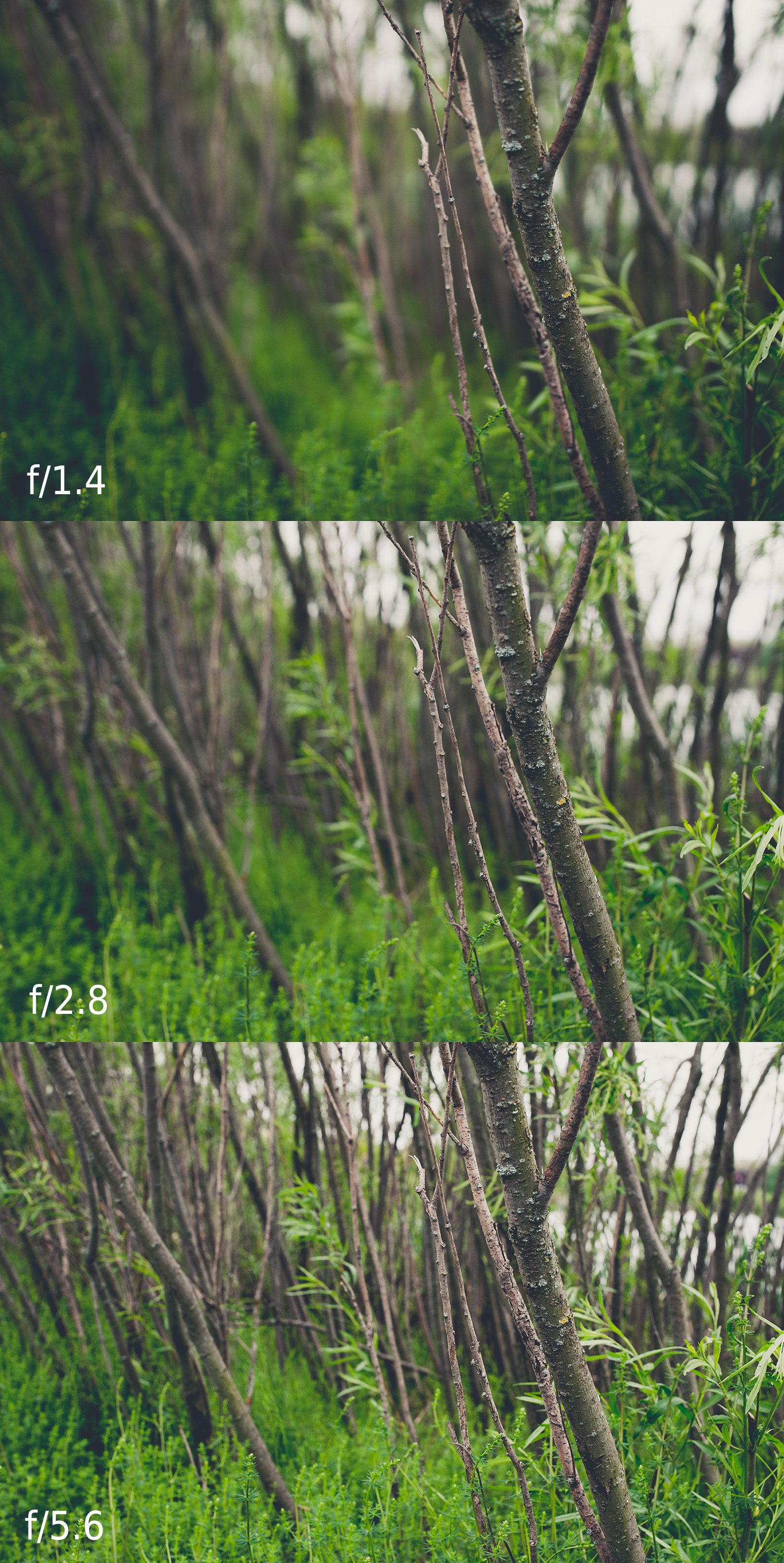

The effect of shooting at f/1.4 is dramatic, even on a DX sensor. I demonstrate this below with a couple sets of images with a range of aperture settings. The first set of images has minimal post-processing, while the second has one of my ‘fade’ presets applied (click on the images for larger versions).

The bokeh is nice. It’s not the best but far, far from the worst. I have no complaints here.

I was, of course, expecting the Sigma 35 to be optically excellent but I am surprised at how accurately it focuses on both the D300s and D7000. The performance contrasts my other fast Sigma, the 50mm f/1.4 where I find the focus to be inconsistent, especially on the D7000. In single-point AF, I find that I am the weak link, not the lens-body pair.

Do I have any negative comments?

Well, it is heavy at only 100g lighter than the 17-55. That’s about it. I’m really looking forward to giving it a workout at my next wedding shoot. I’ll end this micro-review with some more photos.

Nikkor 85mm f/1.8 G Mini-Review

Posted on December 14, 2012 by owencherry

When I first switched from Pentax to Nikon two years ago I was excited to get my hands on the 85mm f/1.8 AF D as an affordable and compact fast portrait lens. In not too long I found a perfectly used copy on Kijiji and picked it up on a sunny Autumn Saturday. While I liked the lens overall, I didn’t LOVE it. I found the colour to be poor, high chromatic aberrations (specifically longitudinal aberrations, aka bokeh fringing) and susceptibility to flare. The straight-edged aperture blades meant that stopping down gave poor bokeh. Wide open I wasn’t fan of the bokeh either. The screw-driven autofocus, while fast, lacked the accuracy of AF-S. In the end I sold it.

This past weekend I picked up it’s replacement, the 85mm f/1.8 AF-S G. So, what does the updated lens get me?

Sharpness. Online tests have shown this lens to be extremely sharp. Photozone measures the G version to be as sharp at f/1.8 as the D is at f/2.8. In fact, the edges of the D lens don’t match the G’s edges at f/1.8 until f/4. After a week with the lens I concur. It’s consistently sharp at every aperture. Now as I’ll show later, aberrations and low depth of field do reduce the apparent sharpness at wide apertures. Below are a couple of images of the cat at f/1.8 indoors at ISO 800.

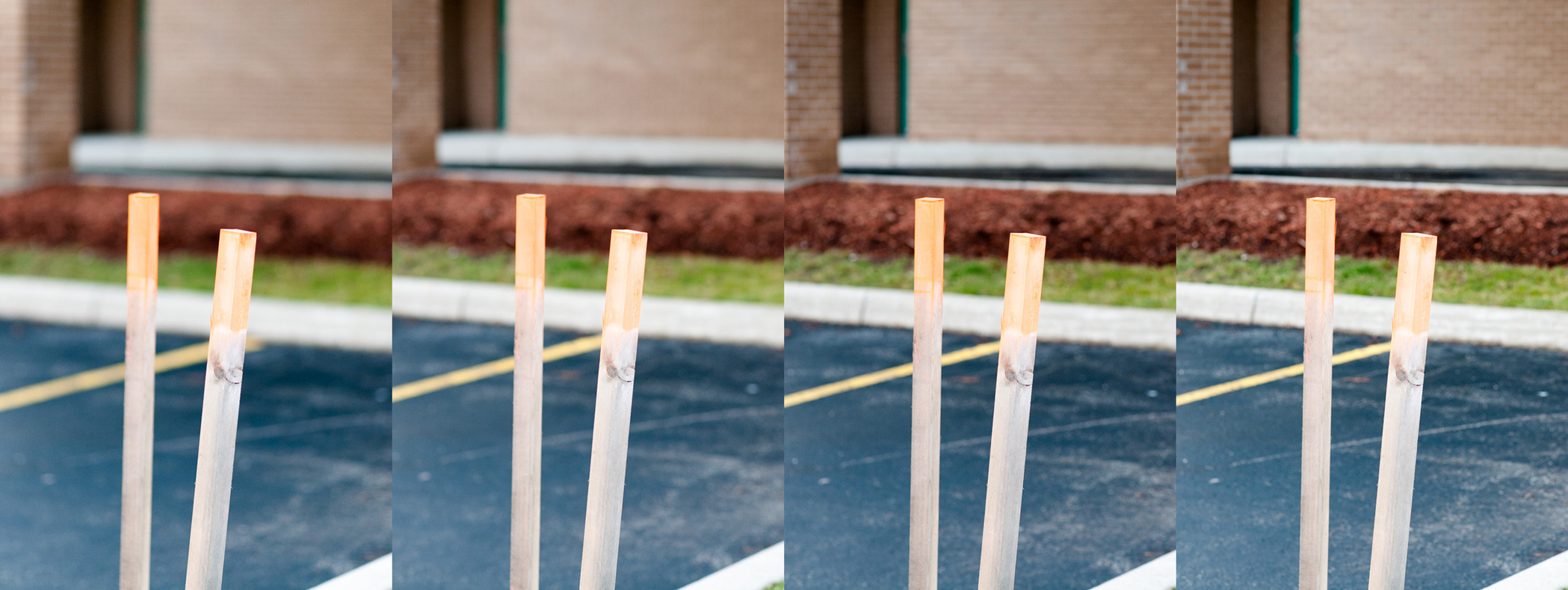

As you can see above, the bokeh is also quite nice. Here is a comparison of the same scene at different apertures (from left to right: f/1.8, f/2.8, f/4, f/5.6).

The only negative aspect of this lens that I’ve come across so far is bokeh fringing. In fact, I don’t see it as any better over the D version. The image below, at f/1.8, shows the purple and green colours that appear in either side of the focal plane.

Fortunately image editing software, such as Lightroom 4, have a correction tool for both lateral and longitudinal chromatic aberrations. Here is a stress condition of an extremely backlit subject both before and after Lightroom 4’s lens corrections. While the tool doesn’t remove the purple and green fringes completely it makes for a much more natural looking image.
